Board Size: 1.5 inches (38.1mm) long and 0.75 inches (19.1mm) wide.
Board Type: 24-pin PCB in a “DIP-like” format, rows spaced .6″ (15.2mm) apart.
Computer Interface: USB
USB Cable Length: 36 inches (914 mm).
USB Connection type: Removable cable.
USB Power Type: Bus powered, uses the 5V provided by the USB interface.
Specified USB allowed current draw: 100mA standard, total.
Bandwidth: 800 bytes per second as a HID device.
USB Bus Speed: 1.5Mbits⁄s. (Low speed)
USB Driver: HID, part of the operating system.
Device Interface: 16 CMOS lines, selectable as inputs⁄outputs.
Controller Device: Cypress CY7C63743.
USB Cable Pin#, Color, Function Chart
| Pin Number | Wire Color | Function | |
| 1 | Red | Vusb | |
| 2 | White | D- | |
| 3 | Green | D+ | |
| 4 | Black | Ground⁄Shield |
PC USB Port (Female ‘A’)

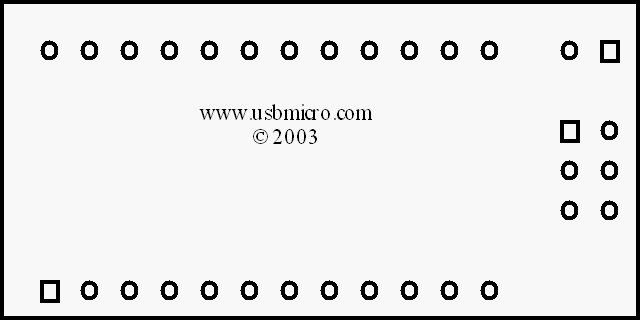

Board Layout:
